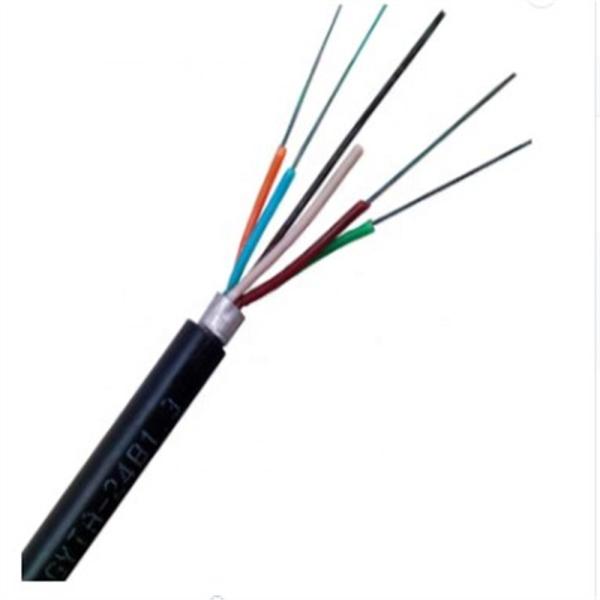

Aerial 4 6 8 12 core multimode fiber optic cable price per meter

Product Categories

Hubei Chenyu Photoelectric Technology Co., Ltd.

Contact Now

Place of Origin : Hubei, China

Brand Name : CY

Model Number : fiber optic cable

Number of Conductors : 4

Product name : fiber optic cable

Application : Telecom Comunication

Certification : CE/ROHS/ISO9001

Color : White Black

Fiber Type : SM MM G652 G655 G657

Jacket : PVC LSZH LSOH PE HDPE

Jacket Material : PVC LSZH CMP CMR CMG

fiber optical core : G652D, G657A1, G657A2

Number of conductor : 2,4,6,8,10,12,,24,36,48,64,96,128,144 cores

brand : CY

Supply Ability : 100000 Kilometer/Kilometers per Month fiber optic cable

Packaging Details : 1km,2km,3km each wooden drum for export

Port : Shanghai port Shenzhen port

MOQ : 2 Kilometer/Kilometers

Price : $0.024 - $0.60 / Kilometers

Contact Now

Product display

With unique flexural optical fibers, which provide greater bandwidth and enhance network transmission functions.

Double parallel FRP or steel wires with good compressive properties and protect optical fibers.

Simple in structure, light in weight and universally used.

A single steel wire or stranded wire with additional reinforcing elements to make the cable with good anti-tensile properties.

Unique groove design, easy to be peeled, easy to be connected,installed and maintenance.

LSZH sheath is good for environmental protection.

Product Parameters

cores No	OD (outer dia.)	Weight kg/km	Tensile Strength Long /Short Term	Crush Resistance Long/Short Term N /100mm	Bending Radius Static/Dynamic mm
1	2.0x5.0	20	100/200	1000/2200	10D/20D
2	2.0x5.0	20	100/200	1000/2200	10D/20D
4	2.0x5.0	20	100/200	1000/2200	10D/20D
6	2.0x5.0	21	100/200	1000/2200	10D/20D
8	2.0x5.0	23	100/200	1000/2200	10D/20D
12	2.0x5.0	25	100/200	1000/2200	10D/20D

Cable information
No.of Fiber cores	4	12	24	96	288
No.of tube	1Tubes	2Tubes	4Tubes	8Tubes	24Tubes
No.of tube/tube	4	6	6	12	12
Cable Outside Diameter	Nom.9.5mm	9.5	9.5	14.6	21.5
Cable Weight(kg/km)	80	80	80	220	310
Loose Tube Material	PBT(Polybutylene terephthalate
Central Strength Member	Steel wire Strength
Outer Sheath	Nom.1.8mm Thick.Black MDPE

Mechanical Environmental Performance
Tensile Strength	Long term:600N Short Term:1500N
Crush Resistance	Long term:300N Short Term:1000N
Bending Radius	Long term:10D. Short term 20D
Storage Temperature	-20°-+60°

Aerial 4 6 8 12 core multimode fiber optic cable price per meter
